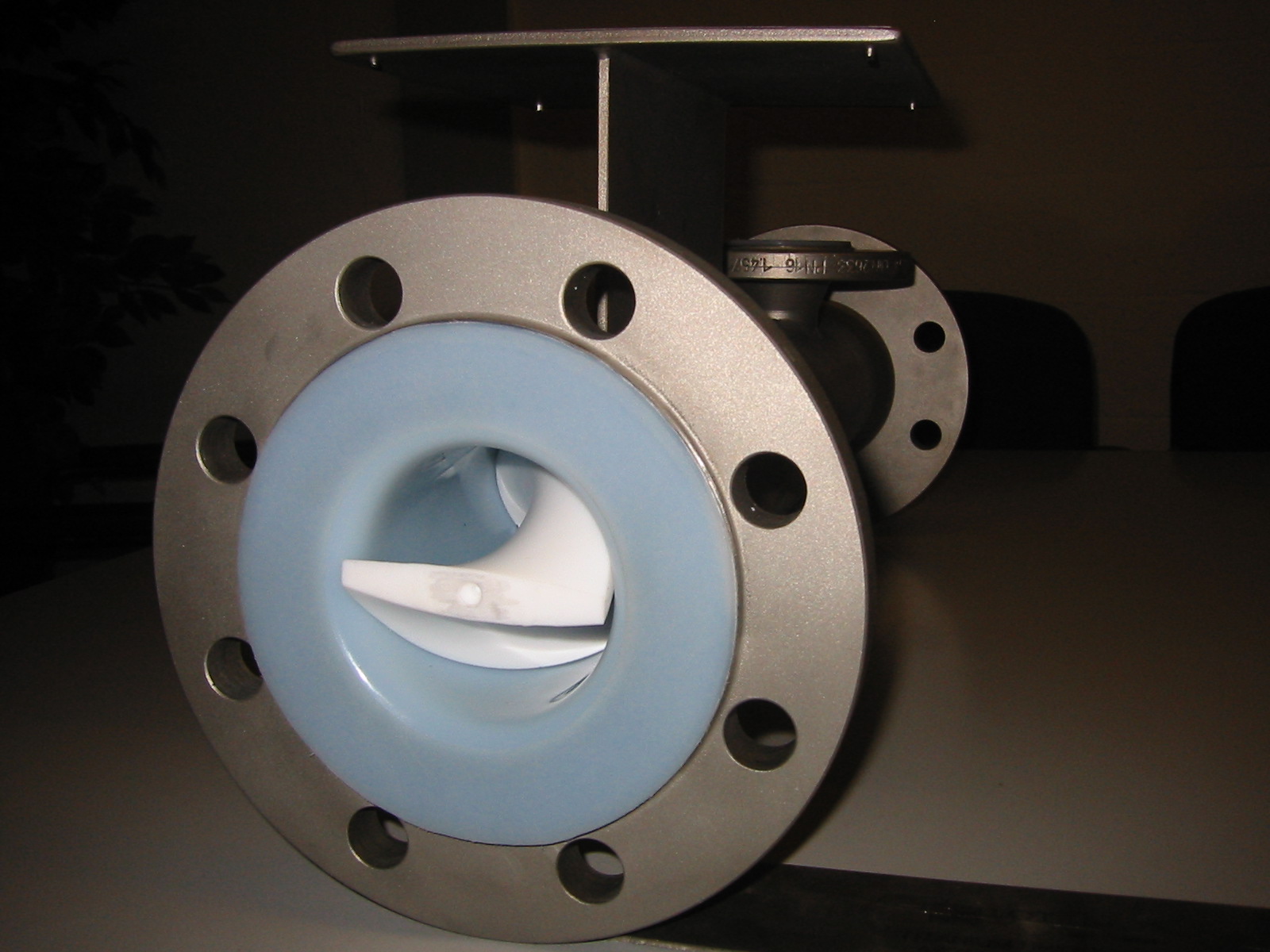

Anti-corrosive Static Mixer
（1）SV static mixer
A. Product feature
SV element is cylinder made of specific bellow plates, the max. Dispersion:1～2um，fluid to fluid uniformity coefficient ＜5%
B. parameters
|
model
|
DN
|
Hydraulic diameter
|
Flow rate（m3/h）
|
model
|
DN
|
Hydraulic diameter
|
Flow rate （m3/h）
|
|
SV-2.3/20
|
20
|
2.3
|
0.5-1.2
|
SV-7/200
|
200
|
7
|
22-110
|
|
SV-2.3/25
|
25
|
2.3
|
0.9-1.8
|
SV-10/250
|
250
|
10
|
88-176
|
|
SV-3.5/32
|
32
|
3.5
|
1.4-2.9
|
SV-10/300
|
300
|
10
|
125-200
|
|
SV-3.5/40
|
40
|
3.5
|
2.2-4.5
|
SV-15/350
|
350
|
15
|
250-340
|
|
SV-3.5/50
|
50
|
3.5
|
3.5-7
|
SV-15/400
|
400
|
15
|
225-452
|
|
SV-3.5/65
|
65
|
3.5
|
5-12
|
SV-20/450
|
450
|
20
|
270-550
|
|
SV-5/80
|
80
|
5
|
9-18
|
SV-30/500
|
500
|
30
|
350-650
|
|
SV-5/100
|
100
|
5
|
14-28
|
SV-30/600
|
600
|
30
|
550-900
|
|
SV-5/125
|
100
|
5
|
24-34
|
SV-30/1000
|
1000
|
30
|
1200-2500
|
|
SV-5/150
|
150
|
5
|
30-60
|
SV-30/1200
|
1200
|
30
|
1500-3000
|
C. function
Applicable to viscosity＜102 CP Liquid to liquid, Gas to gas, Liquid to gas mixing, emulsification, reaction, absorb, extraction, heat transfer etc.
（2）SK static mixer
A. Product feature
SK element is welded by single pore left and right twisted spiral plate. Max. dispersion:10um，fluid to fluid and fluid to solids uniformity coefficient ＜5%
B. Function
Applicable to mixing, emulsification, reaction, absorb, extraction, heat transfer of Chemical, petroleum, medic ion, precision chemical, plastics, color matching, environment protecting, synthetic fibre etc. departments. Especially suitable to small flow along with impurity and high viscosity medium ＜106CP.
C. Parameters
|
model
|
DN
|
Hydraulic Diameter
|
Flow rate（m3/h）
|
Model
|
DN
|
Hydraulic diameter
|
Flow rate（m3/h）
|
|
SK-5/10
|
10
|
5
|
0.15-0.3
|
SK-50/100
|
100
|
50
|
14-28
|
|
SK-7.5/15
|
15
|
7.5
|
0.3-0.6
|
SK-62.5/125
|
125
|
62.5
|
22-44
|
|
SK-10/20
|
20
|
10
|
0.6-1.2
|
SK-75/150
|
150
|
75
|
31-66
|
|
SK-12.5/25
|
25
|
12.5
|
0.9-1.8
|
SK-100/200
|
200
|
100
|
56-110
|
|
SK-16/32
|
32
|
16
|
1.4-3.2
|
SK-125/250
|
250
|
125
|
88-177
|
|
SK-20/40
|
40
|
20
|
2.2-4.5
|
SK-150/300
|
300
|
150
|
127-250
|
|
SK-25/50
|
50
|
25
|
3.5-7
|
SK-175/350
|
350
|
175
|
173-340
|
|
SK-32.5/65
|
65
|
32.5
|
5.9-12
|
SK-200/400
|
400
|
200
|
226-450
|
|
SK-40/80
|
80
|
40
|
9-18
|
SK-250/500
|
500
|
250
|
353-700
|
(3) SX static mixer
A. Product feature
SX element is made of many X shape cross elements. uniformity coefficient ＜5%.
B. Parameters
|
Model
|
DN
|
Hydraulic diameter
|
Flow rate（m3/h）
|
Model
|
DN
|
Hydraulic diameter
|
Flow rate（m3/h）
|
|
SX-12.5/50
|
50
|
12.5
|
3.5-7
|
SX-50/200
|
200
|
50
|
56-110
|
|
SX-16.25/65
|
65
|
16.25
|
6-12.25
|
SX-62.5/250
|
250
|
62.5
|
88-176
|
|
SX-20/80
|
80
|
20
|
9-18
|
SX-75/300
|
300
|
75
|
125-250
|
|
SX-25/100
|
100
|
25
|
14-28
|
SX-87.5/350
|
350
|
87.5
|
173-340
|
|
SX-31.25/125
|
125
|
31.25
|
22-44
|
SX-100/400
|
400
|
100
|
226-450
|
|
SX-37.5/150
|
150
|
37.5
|
30-60
|
SX-125/500
|
500
|
125
|
350-700
|
C. Function
Applicable to middle and high viscosity ＜104 CP fluid to fluid reaction, mixing, absorb process or liquids who producing high polymer products, especially for bigger capacity.
（4）SL static mixer
A. Feature
SL element is made of half side of X shape element. fluid to fluid and fluid to solids uniformity coefficient ＜5%
B. parameters
|
model
|
DN
|
Hydraulic diameter
|
Flow rate （m3/h）
|
Model
|
DN
|
Hydraulic diameter
|
Flow rate （m3/h）
|
|
SL-12.5/25
|
25
|
12.5
|
0.7-1.4
|
SL-100/200
|
200
|
100
|
56-110
|
|
SL-16/32
|
32
|
16
|
1.4-2.9
|
SL-125/250
|
250
|
125
|
88-176
|
|
SL-20/40
|
40
|
20
|
2.3-4.6
|
SL-150/300
|
300
|
150
|
125-250
|
|
SL-25/50
|
50
|
25
|
3.5-7
|
SL-175/350
|
350
|
175
|
173-340
|
|
SL-40/80
|
80
|
40
|
9-18
|
SL-200/400
|
400
|
200
|
226-450
|
|
SL-50/100
|
100
|
50
|
14-28
|
SL-250/500
|
500
|
250
|
350-700
|
|
SL-75/150
|
150
|
75
|
32-64
|
SL-300/600
|
600
|
300
|
350-700
|
C. Function
Applicable to chemical, petroleum and greese industry, viscosity＜106CP or high polymer mixing, and heat exchanging, mixing at same time.
（5）SH static mixer
A. Feature
SH element is made of double pores, there is fluid re-distribute space between elements. Fluid to fluid and fluid to solids uniformity coefficient ＜5%
B. Function
Applicable to mixing, emulsification, color matching, plastic injection, heat exchanging process of precision chemical industry, petroleum, greese, plastics, synthetic fibre, mining industry. Especially for clean medium with higher mixing requirements viscosity＜106CP.
3、parameters
|
Model
|
DN
|
Hydraulic diameter
|
Flow rate（m3/h）
|
model
|
DN
|
Hydraulic diameter
|
Flow rate（m3/h）
|
|
SH-3/15
|
15
|
3
|
0.1-0.2
|
SH-19/80
|
80
|
19
|
4-8
|
|
SH-4.5/20
|
20
|
4.5
|
0.2-0.4
|
SH-24/100
|
100
|
19
|
6.5-13
|
|
SH-5/25
|
25
|
5
|
0.5-1.1
|
SH-36/150
|
150
|
36
|
31-63
|
|
SH-7/32
|
32
|
7
|
0.9-1.8
|
SH-49/200
|
200
|
49
|
54-180
|
|
SH-9/40
|
40
|
9
|
1.6-3.2
|
SH-74/300
|
300
|
74
|
124-248
|
|
SH-12/50
|
50
|
12
|
2.3-4.6
|
SH-124/500
|
500
|
124
|
174-348
|
(6) SD static mixer
|
Model
|
DN(mm)
|
Hydraulic diameter(mm)
|
Flow rate（m3/h）
|
model
|
DN
|
Hydraulic diameter
|
Flow rate（m3/h）
|
|
SD-5/10
|
10
|
5
|
0.15-0.3
|
SD-25/50
|
50
|
25
|
3.5-7
|
|
SD-7.5/15
|
15
|
7.5
|
0.3-0.6
|
SD-32.5/65
|
65
|
32.5
|
5.9-12
|
|
SD-10/20
|
20
|
10
|
0.6-1.2
|
SD-40/80
|
80
|
40
|
9-18
|
|
SD-12.5/25
|
25
|
12.5
|
0.9-1.8
|
SD-50/100
|
100
|
50
|
14-28
|
|
SD-16/32
|
32
|
16
|
1.4-3.2
|
SD-62.5/125
|
125
|
62.5
|
22-44
|
|
SD-20/40
|
40
|
20
|
2.2-4.5
|
SD-75/150
|
150
|
75
|
31-64
|
Applicable to mixing, emulsification, color matching, plastic injection, heat exchanging process of precision chemical industry, petroleum, greese, plastics, synthetic fibre, mining industry. Especially for clean medium with higher mixing requirements viscosity＜106CP.
Attention
1. General project design always use single unit or tandem mixer to work. If customer would like two static mixers to be parallel, then the pipes should guarantee fluid distributed uniformly.
2. When use small type SV mixer, if there is impurity in mixing material, then customer should set 2 filters, which installed in parallel and switch over working. The filter element screen choose 40-20 mesh stainless steel screen.
3. If possible, please don’t install any flow rate, temperature, pressure indicator panel or monitoring point. If there is special requirements, it should be designed and explained on the drawing before order.
4. Please inform us in advance of placing order, if customer needs to install heat exchanger casing pipe outside of static mixer housing body. 5. To SH series static mixer, because of its high precision, and hard maintenance, customer should place it upside down and use solvent to clean, or use the cleaning medium which could be melt under high temperature. 6. To SV series static mixer, if it is stocked by impurity in the fluid, customer could disassemble the mixer, cleaning by upside down position with water vapour or solvent. Also customer could take down the inner mixing element, and take out the blockage.
7. To SK series element-non-fixed mixer, customer could take out all the elements and get cleaned. But please take attention, don’t knock it roughly, in case the elements out of shape.
8. Generally, based on different requirement of different customers, we design accordingly. With choosing right product and right material, our static mixer could avoid repairing.
