Post-tensioned unbonded prestressed concrete bar is suitable for cast-in-place concrete of long-span and wide buildings, large load prefabricated beam and other construction.
No need leaving room for future expansion and no need grouting, convenient construction, material-saving, bended easily, etc.

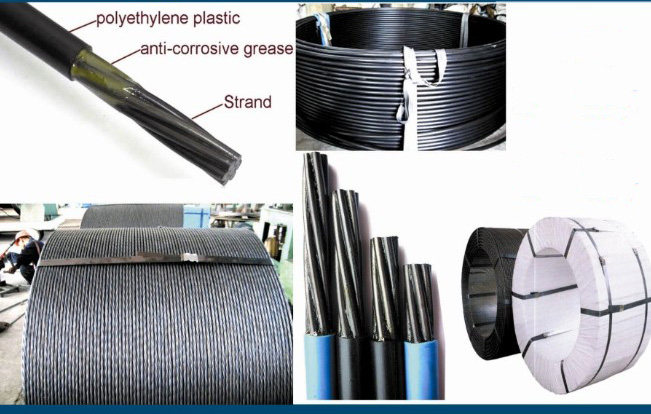

1) unbonded P.C.strand Nor.Dia.(mm):Φ12.0;Φ 15.0;Φ15.24;Φ15.70
2) unbonded P.C. weir bunch Nor. Dia(mm):Φ12.0;Φ15.0(5)
|
Specification
|
Tensile strength(Mpa)
|
Section area (mm²)
|
Grease mass per meter (g/m)
|
Minimum thickness of coat(mm)
|
Friction factor (μ)
|
Effect modulus(K)
|
Mass per meter (kg/m)
|
|
1×7-Φ12.70
|
1720
|
98.7
|
43
|
0.8
|
0.04-0.1
|
0.003-0.004
|
0.875
|
|
1860
|
|
1960
|
|
1×7-Φ15.20
|
1570
|
140
|
50
|
1
|
0.04-0.1
|
0.003-0.004
|
1.21
|
|
1670
|
|
1770
|
|
1860
|
|
1960
|
|
1×7-Φ15.24
|
1860
|
140
|
50
|
1
|
0.04-0.1
|
0.003-0.004
|
1.21
|
